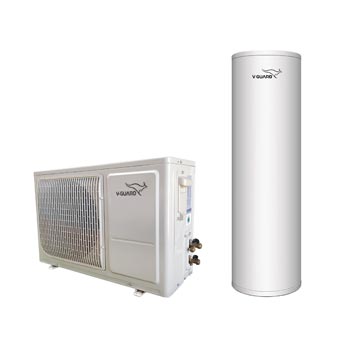

V-Guard Heat Pumps

Heat Pumps

Applications:

After a long day, you know that you and your family deserve easy access to soothing hot water. This series of Domestic Heat Pump Water Heaters is designed to give you and your family hot water round the clock, throughout the year in an energy efficient and affordable way. Running hot water, in recent times has become a necessity more than a luxury. With V-Guard, every household can now have readily available hot water anytime. They are energy efficient and save on fuel cost as the heat is absorbed from the atmosphere. Like every other product from V-Guard, the smallest detail has been looked at to make sure that only the best product reaches our valuable customer. V-Guard Heat Pump Water Heaters are usually said to be “fit and forget” units. If you have bought a V-Guard heat pump water heater, rest assured, you have bought the best product in its category with best-in-class features in safety, efficiency, power saving and environment protection. So, if you want to spend lesser than what you pay currently for using warmer water, heat pump water heater is the thing which you would not want to miss out on.

  • Salient Features
  • Technical Specification
The enamel glass line-coated tank helps in corrosion resistance and trouble-free performance.
V-Guard Domestic Hear Pump uses an environment-friendly R410A refrigerant.
The glass-lined storage tank of the V-Guard Domestic Hear Pump is suitable for all kinds of water.
V-Guard Domestic Heat Pump comes with a 5-year warranty for the tank and compressor and a 3-year warranty for the heat pump.
The V-Guard Domestic Heat Pump has a silent operation; therefore, you won't be disturbed by the rumbling noise.
Condition: Note * Heating Capacity at Air 20°C/15°C, Water Temperature from 15°C to 55°C
Easy to install and assures hassle-free services
The low-maintenance feature helps you save money and time.
The electric backup heater provides faster heating by enabling a temperature rise of up to 75 degrees Celsius.
Automatic defrost assures that maintenance and cleaning intervals do not come too often
V-Guard HP Model Name V-HP 150 V-HP 200 V-HP 300 V-HP 500
Ta n k volume (L) 160 210 320 500
Heating capacity (W) 3500 3500 3500 5800
Production capacity (LPH) 70 70 70 125
Rat ed power input (W) 810 810 810 1320
COP 4.32 4.32 4.32 4.38
Backup electric heater(W) 1500 1500 1500 2000
Max power input (W) 2400 2400 2400 3400
Rated current (A) 3.7 3.7 3.7 6
Maxcurrent (A) 11 11 11 15.5
Power supply 220~240V/1/50Hz 220~ 240V/1/50Hz 220~ 240V/1/50Hz 220~240V/1 / 50Hz
Waterproof level IPX4 IPX4 IPX4 IPX4
Refrigerant R410a R410a R410a R410a
Maxwater temperature (°C) 60 60 60 60
Heat pump net dimension (mm) 682x252x448 682x252x448 682x252x448 838x300x545
Heat pump net weight (Kg) 25 25 25 36
Noise [db) ≤48 ≤48 ≤48 ≤49
Tank net dimension (mm) ϕ 440*1696 ϕ 500*1716 ϕ 620*164 1 ϕ 750* 1 900
Inner tank diameter (mm) ϕ 350 ϕ 410 ϕ 520 ϕ 650
Inner Tank Material Enamel coated Steel with Mg Anode Enamel coated Steel with Mg Anode Enamel coated Steel with Mg Anode Enamel coated Steel with Mg Anode
Water Inlet/outlet size 3/4" 3/4" 3/4" 1"
Insulation thick ness(mm) 50 50 50 50
Tank net weight (Kg) 53 60 90 128
Working temperature (°CJ -15~43 -15~43 -15~43 -15~43
